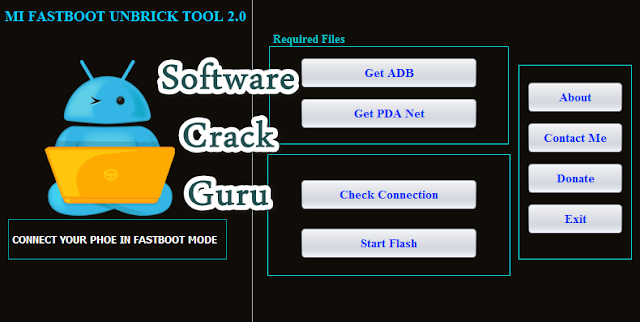

Mi FastBoot Unbrick Tool 2.0...
What is this tool?
After getting so many errors while using MiFlash Tool, I decided to find a simple but an effective way for flashing the rom without any errors.After many attempt i was able to finad a perfect solution for it.
************************************************** ********************
The main cause of getting bootloop is relocking of the bootloader
************************************************** ********************
This tool was created as a result of it. Hope this will help all others who are facing this issue...
Features of this Tool
- Small in size nearly 3 MB
- No need of edl, Works with fastboot mode
- Chance of failure is 1% or below
requirements
- Java Installed In PC. Get java from here
- ADB drivers installed..Get it from here
- Pda Net (optional)..Get it from here
- Bootloader Unlocked
- Get Fastboot rom from here
What do the problems occurs when using MiFlashTool??
The main errors I faced with Mi FlashTool Are:-
- Unspecified error(0x80004005
- Not Enough Memory
- Error while receiving halo Packet
- And many other errors I haven't noticed or didn't cared
What/How this tool works?
-So after bricking my phone any time (nor even able to enter Recovery Mode) and many unsuccessful flashes using MiFlashTool I looked into the Fastboot ROM files and Got an idea about how the Flashing process works.
-All you need is fastboot to unbrick the phone. No edl or no other things to flash the ROM.
- For almost every Mi Phone, unbricking will be the same as mentioned in the Manual Method(This tool is designed for RN3). If I get testers will think about doing for other models also.
- I used the RN3 rom from here
************************************************** *************
(only use if you replace the Unlocked Bootloader file)
************************************************** *************
-First Things first
Run cmd ad administrator and run the following command one by one
Code:
bcdedit.exe -set loadoptions DDISABLE_INTEGRITY_CHECKS bcdedit.exe -set TESTSIGNING ON
-Download the file from the attachment and extract it in the images folder of the fastboot rom. The folder will have many files like a boot, cache, cust, etc..
-Once extracted the software copy and paste the unlocked bootloader file in the images folder and overwrite any existing file.
-Now run the software and follow the instructions (its very noob friendly,I think there will be no more need for detailed tutorial)
- Once the flashing process is completed your phone will be good to go
Not Working ?? Try Manually
- Go to Images Folder of the fastboot rom and holding shift key right click to Open Command Window Here.
- Once you entered the cmd and execute the command individually as shown below.
fastboot flash tz tz.mbn fastboot flash sbl1 sbl1.mbn fastboot flash rpm rpm.mbn fastboot flash aboot emmc_appsboot.mbn fastboot flash hyp hyp.mbn fastboot flash tzbak tz.mbn fastboot flash sbl1bak sbl1.mbn fastboot flash rpmbak rpm.mbn fastboot flash abootbak emmc_appsboot.mbn fastboot flash hypbak hyp.mbn fastboot erase boot fastboot flash modem NON-HLOS.bin fastboot –S 512M flash system system.img fastboot flash cache cache.img fastboot flash userdata userdata.img fastboot flash recovery recovery.img fastboot flash boot boot.img fastboot flash sec sec.dat fastboot flash dsp adspso.bin fastboot flash mdtp mdtp.img fastboot erase splash fastboot flash splash splash.img fastboot erase DDR fastboot flash cust cust.img
If you replaced the unlocked bootloader file you may get a continuous reboot. If you face something like that simply type the following command(After doing above process only)
fastboot oem unlock-go
fastboot reboot
It will reboot the system, and wait for your device to boot accordingly, no worries it will listen to your prayers to unbrick.
Enjoy
