(FREE)MTK META Utility V52 MTK AUTH Bypass Tool Added Redmi 6a Permanent bootloader unlock

MTK Auth Bypass Tool V52 (MTK META MODE UTILITY) Latest Version Free Download

MTK Auth Bypass Tool V52 (MTK Meta Mode Utility) is a free windows program that helps to bypass DAA & SLA Auth (Secure Boot protection) from any MediaTek MTK-powered phone quite easily.

Nowadays, every Android smartphone comes with USB protection to avoid third-party flashing and misuse of the device. You won’t be able to flash or unlock your phone without any authorized tool or permission. So, in this scenario, the MediaTek MTK Secure Boot Disable Tool can help you to bypass the auth security from your phone.

MTK Auth Bypass Tool 51 (MTK Meta Mode Utility) helps to detect any Oppo, Vivo, Tecno, Xiaomi Redmi, Infinix, MTK-based smartphones into the SP flash tool, Miracle Box, UMT, MRT, MCT, CM2 Dongle for Flashing, Unlocking, and Repairing the phone. It comes with an auto-installer package and supports Windows 11, Windows 10, Windows 8, Windows 8.1, Windows 7, and Windows XP (32 & 64bit) architecture.

Features MTK META Utility:

MTK Brom Mode:

- Disable Auth

- Dump Preloader

- Crash Preloader

- Crash Preloader To Brom

- Samsung MTK Force Brom (DM)

- Samsung MTK Exit Brom

- Samsung MTK Rebuild PMT (DM)

- FRL-L22 Y9A Force Brom

- Reboot Meta

- Reboot AT Mode

- Reboot Factory Mode

- Reboot Fastboot Mode

- VIVO New SEC Read info (FM)

- Analyze MTKA DA

- Analyze Preloader

META Mode:

- Read Meta Info

- Read Part (META)

- Format Part (Meta)

- Write Part (Meta)

- Dump MDDB/APDB (META)

- DUMP NV Regions (META)

- Dump User area (Meta)

- Dump PGPT (Meta)

- Dump EXT_CSD (META)

- EMMC Health Check (META)

- Factory Reset - META

- Factory Reset - META 2

- Gen FRP Reset PKG (META)

- Read NVRAM

- Wipe NVRAM

- Write NVRAM

- Unlock Network

Android Mode:

- Read ADB Info

- Read Fastboot Info

- Exit Fastboot Mode

- Xiaomi Enable Diag (ADB)

- Install APK (ADB)

- Disable the Payjoy APP (ADB)

- Generic ADB FRP Bypass

- Generic Fastboot Factory Reset

- Generic Fastboot FRP Wipe

- Wipe NVRAM_NVDATA (Fastboot)

- Extract Super IMG

- Extract OFP (MTK + QCOM)

- Extract Samsung ROM (MTK)

- Extract Huawei UPDATE (MTK)

- Extract OnePlus ROM (.ops)

- Extract LG ROM (.kdz)

- Extract RedMagic (payload.bin)

Extra Features:

- Samsung Reboot to Download Mode

- Samsung Read Info Download Mode

- Samsung Factory Reset (MTP)

- Samsung Activate ADB (MTP)

- Huawei Fastboot To Upgrade

- Huawei Normal To Upgrade

- VIVO Demo Remove (AT)

- VIVO Demo Remove (MT6877T)

- PGPT to Scatter

- Scatter to PGPT

Supported CPUs:

• MT6572
• MT6580
• MT6582
• MT6592
• MT6595
• MT6735
• MT6737
• MT6739
• MT6753
• MT6755
• MT6750
• MT6750M
• MT6750T
• MT6750S
• MT6757
• MT6761
• MT6762
• MT3369
• MT8766B
• MT6763
• MT6765
• MT6768
• MT6771
• MT6779
• MT6785
• MT6795
• MT6797
• MT8127
• MT8163
• MT8516
• MT8173
• MT8695
• MT6873
• MT6799
• MT8590
• MT6781
• MT6768
• MT6883
• MT6885
• MT6889
• MT6833
• MT6853
• MT6853V
• MT6873
• MT6891Z
• MT6893
• MT8765WB
• MT8385
• MT8183
• MT8666

Changelog!!!

MTK META Utility V52  :

- I noticed a lot of people struggling to unlock the bootloader for this model (Redmi 6A (cactus).

- Added Permanent Bootloader Unlock for Redmi 6A (cactus).

- Note : The Bootloader will be permanently unlocked after performing this operation, the reason is we set eMMC PERM/TEMP write protect flag to SECCFG area using the MTK CPU SBrom Crypto driver to prevent BL re-lock after boot-up.

- We set a small check flag to ensure the device model is (Redmi 6A) the method is risky, so please try to operate with any different model code.

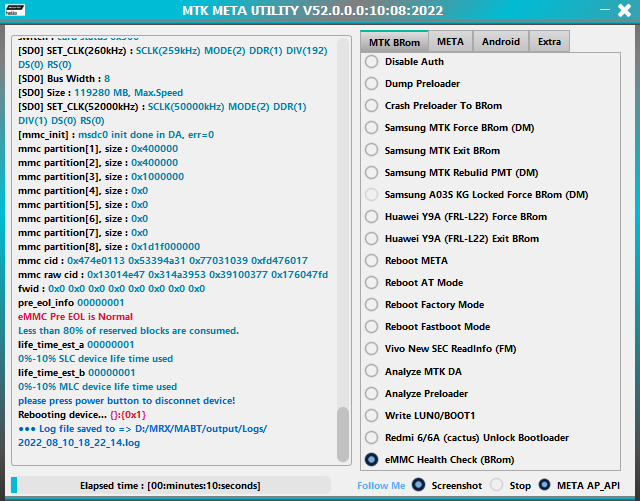

- Added eMMC/UFS health check from BootROM mode.

- The method uses DA logging handler to init the IC and dump info from :

- life_time_est_a

- life_time_est_b

- pre_eol_info

- the deep logging system is statically implemented in the DA as well to detect HW faults, could work even in dead DRAM case

& please don't try to operate this method with brands like (Infinix/Tecno) - the device might stuck at brom mode after health check and will need to disconnect battery to get the device working again.

- Added Dump and parse EXT_CSD registers via BootROM mode (implanted in eMMC/UFS health check function).

- The method supports only MediaTek 64bit based chipsets.

- Added Huawei Y9A FRL-L22 Force BRom mode from Upgrade Mode.

- Added Huawei Y9A FRL-L22 Exit BRom mode.

- Fixed VIVO New security (MT6768-MT6833P-MT6853) Read Info only from preloader mode.

$ - This software is provided 'as-is', without any express or implied warranty.

 In no event will the authors be held liable for any damages arising from the use of this software.

- Use it at your own risk.

How To Use?

1. Download & Unzip the MTK Auth Bypass Tool or MTK Meta Mode Utility to your computer.

• Run MTKMETAUtility.exe
• Install LibUSB Win32 driver to your computer (Skip this if already completed)
• Now Power Off your phone
• Press Volume Up And Power and Insert a USB cable
• Click Disable Secure Boot
• If the Disable Secure Boot process does not work, use the Force BROM function.
• That’s it.
• It will bypass the Auth Security from your phone.
• Now you can use any unlock tools like SP Flash Tool, Miracle Box, UMT, or CM2 to unlock your phone.



File Download:

Download Here (Pass:: mtk_meta_utility)

README:

Compatibility: The tool runs perfectly on Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, and Windows 10 (32-bit and 64-bit).

Take a Backup: If you are willing to try the above tool, then please take a backup of your personal data from your Android Smartphone or Tablet. As flashing any Firmware or recovery may brick the device.

Credits: MTK META Utility is created and distributed by the developer. So, full credits go to the developer for sharing the tool for free.
